CD Stud Welding Machine, Roller Forming Machine For Drywall

  • CD Stud Welding Machine, Roller Forming Machine For Drywall
  • CD Stud Welding Machine, Roller Forming Machine For Drywall
  • CD Stud Welding Machine, Roller Forming Machine For Drywall
  • CD Stud Welding Machine, Roller Forming Machine For Drywall

CD Stud Welding Machine, Roller Forming Machine For Drywall

    Unit Price: USD 25000.0000 - 6500.0000 / Set/Sets
    Payment Type: T/T,L/C,D/A,D/P,Western Union,O/A
    Terms of Trade: FOB
    Min. Order: 1 Set/Sets
    Delivery Time: 30 Days
    Packaging: As the Customer's Requirement
    Productivity: 5-50m/min
    Brand: ZHONGTUO
    Transportation: Ocean,Land,Air,as customer requirem
    Place of Origin: China
    Supply Ability: 30 sets/month
    Certificate: CE\ISO9001

Basic Info

Model No.: ZT-005-175

Product Description

CD Stud Welding Machine, Roller Forming Machine For Drywall

CD Stud Welding Machine, Roller Forming Machine For Drywall supports material thickness from 0.4-1.2 mm stud,track or carrying channel with the full engineering technicaldata/specification. Designed and pre-engineered by experienced truss specialists using only the very latest software. Normally our machine could make truss for Indian, Australia, Egypet and other countries. The shapes of the trusss are like furring hat shape, U shape, C shape, L shape and others.The speed will up to 50m/min depond on servo running cutter.

CD Stud Welding Machine, Roller Forming Machine For Drywall

Drawing profile for you reference :

CD Stud Welding Machine, Roller Forming Machine For Drywall

Component for CD Stud Welding Machine, Roller Forming Machine For Drywall:

1. Decoiler one set

2. main roll forming machine one set

3. cutting and punching part

4. control box one set

5. hydraulic station

Details information for CD Stud Welding Machine, Roller Forming Machine For Drywall:

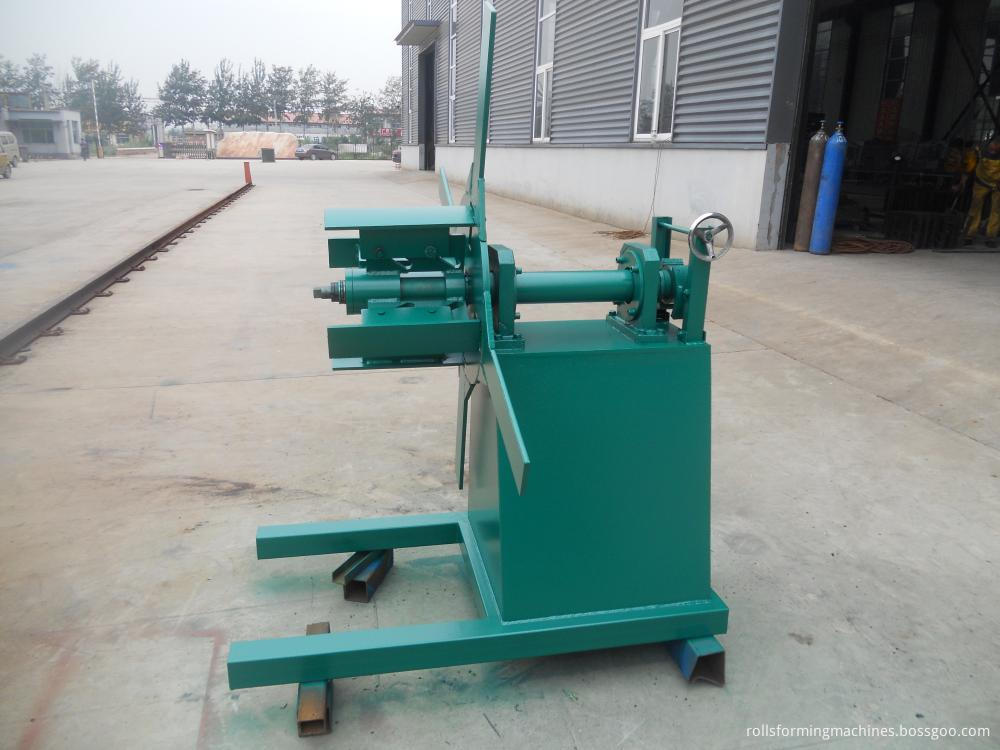

Decoiler

Usage: It is used to support the steel coil and uncoil it in a turntable way. Passive uncoil pulled by roll forming system

Loading capacity: 1.5T

Uncoiling width: 300mm

Inner diameter: 450-550mm

Furring Channel Machine

Main roll forming machine:

Feeding and leveling will level coil to make sure it is neat clean and straight.

Size: 3800х800х1400mm

Weight t: 2.6 tons

Voltage:380V/50HZ3Phase(as customer`s request)

Roller fixer : Guide column

Frame : middle plate welded

Memorial arch frame type

Frame thickness:25mm

Speed: 5-50m/min

Drive mode: gear

Material of rollers: GCr12MoV

Material of shafts: 45# steel with tempering

Diameter of shafts: φ40mm

Number of rollers : 10rollers

Main power: 4kw

CD Stud Welding Machine, Roller Forming Machine For Drywall CD Stud Welding Machine, Roller Forming Machine For Drywall

Shearing machine:

Material of blades: Gcr12 quenched

Power supply : hydraulic power

Frame : Pillar style with rack & pinion system

CD Stud Welding Machine, Roller Forming Machine For Drywall CD Stud Welding Machine, Roller Forming Machine For Drywall

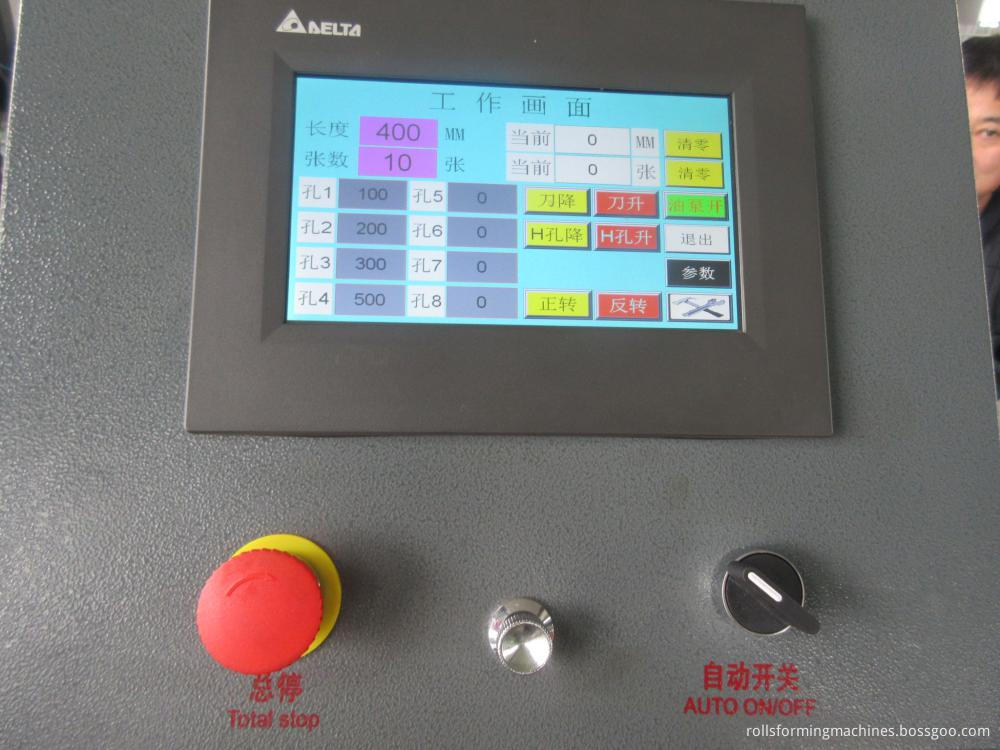

Electric Control System:

Feature:

1. Adopted PLC, transducer, touch panel from Delta Taiwan to ensure high speed with stability, precision and lifetime.

2. Equipped with movable switch, air break, radiator, transformer & electric leakage protector for operation convenience and safety.

Furring Channel Making Machine

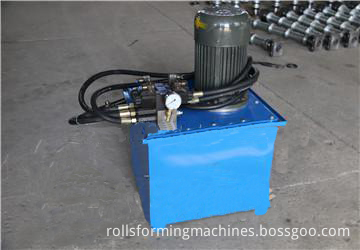

Hydraulic Station:

Hydraulic motor Power: 3kw

Hydraulic oil: 46#

Furring Channel Making Machine

Other mark:

2. Payment: 30% T/T in advance and balance 70% after inspection confirmation before shipment.

3. One year, and we will provide the technical support for the whole life.

4. Training: the buyer should charge of visa, return ticket, food and accommodation overseas and USD50/person/day for salary.

5. Need one technicians.

6. Training time: one week (contains the time of installation and adjustment)

  • 1
  • 2
  • 3
  • 4
  • 5


Cangzhou Zhongtuo roll forming machinery co., LTD from 1996. We are specialized in manufacturing color steel forming machine,light keel machine,C&Z purlin machine,Glazed tile forming machine,welded tube mill, stone coated roof production line,steel structural floor panel roll forming machine and so on. We also have the derivatives and raw material. We real provide you one station, non-stop service,Now,our machine have been exported to 30 countries,such as Canada,South Korea,Russia,Holland,Sri Lanka,Malaysia,India,Brazil,etc.Our company insists on the service aim: Quality First,Credit First. We believe that we can make the future cooperation and achieve win-win.
